TETRA INDIA TRK-W2IP

TETRA INDIA Pvt. Ltd.

TRK-W2IP

What is Water- Based Green Sand Mold Parting Agent?
	It is a liquid need to Spray over the pattern before the sand blow to release the sand mold smoothly and to avoid the sand sticking to the pattern.

What is “Water-Based oil”?
	It is not greasy oil; it is Water in oil (emulsion).


	Looking for a safe and eco-friendly parting agent? Want to increase the capacity of production against high-temperature sand? Want to reduce the mold breakage for critical patterns or jobs? Facing sand sticking? Facing sand inclusion? Facing cold shot? Facing manual works to repair mold breakage? Want clear letter impression on castings?

	Fire safety	Safe & Eco-friendly
	Reduction In Rejection	Better Mold Release

No.1 in Japan for Green Sand Mold Parting Agent



	.....	A liquid containing water-particles in oil-particles: Emulsion


	Flash point is not measurable: reduction in fire hazard

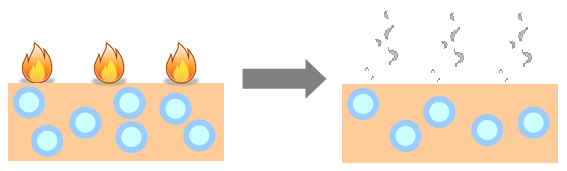

The parting agent acts as self-fire extinguisher because when the water particles get heated they evaporate and do not let the oil catch fire.

burn

The parting agent catches fire without water particles in them. It is not nonflammable, but fire-retardant.


	Reduction in oil content = Reduction in oil use

Around 40% reduction

emission CO2

Reduction in CO2 emission!



	.....	Lasting mold release performance with a small amount of TRK-W2IP compare to oil-based parting agent

Water-based release agent has chemical and physical adhesion property on pattern surface.


Effective with just small application	High mold surface stability


	It is effective enough to apply a small amount as water-based release agent has more adhesive power to the pattern than that of oil-based parting agent.		Surface stability declines in case of oil-based parting agent, due to more application.


	EX) customer’s voice After using TRK-W series 79% reduction in per month parting agent consumption.			EX) Pressure plate Surface finish rejection reduction: 2.5%→0% Process defect reduction: 1.4%→0%

As a leading company became the leader in fire safety measures
Fire accident reduction due to welding repair of wires and hoses and dispersion of molten metal while handeling
Easy to use as this parting agent does not come under Fire Services Act(Japan)
Excellent release performance even in case of critical jobs
No need to apply this parting agent per mold to the patterns for which more oil based agent had been used
Improvement in casting letter appearance
Increase in durability of bottom plate of machine (vertical lines)
Reduction in manual works for mold breakage
Highly stable production against high-temperature sand
Reduction in sand sticking

Appearance

White liquid

TRK-W2IP

20L

Plastic Container (20L)

TRK-W2IP surface stability comparison Experiment
Gas generation Volume comparison
